HDPE Pipe Extrusion Machine

Availability:
Quantity:

Product Description

Product Description

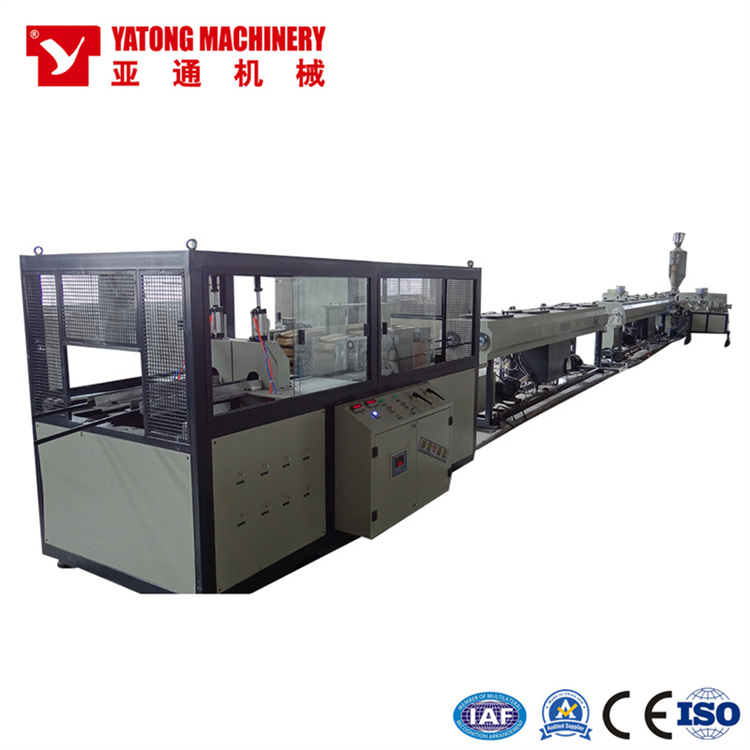

PE/PPR pipe extrusion / production line is spefialized for PE/PP/ABS...Material and make pipe. The extruder equipped with barrel unit and mixing structure, we use special screw and barrel for PE/PPR/ABS...Material, special design for shaping and cooling system, the vacuum shaping tank can ensure the stability of size and roundness, speed controllers are used in extruder, haul-off to offer stability and precision. The whole line can adopt PLC control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another co-extruder used for extruding color line.

Pipe range 16-63mm  20-110mm  75-160mm  90-250mm  110-315mm  160-500mm  315-630mm  500-800mm
Extruder  ø45mm  ø60mm  ø75mm ø75mm   ø90mm ø90mm   ø120mm  ø150mm
Extruder power  AC 30kw DC 75kw  DC 110kw  DC 110kw  DC 160kw  DC 185kw  DC 250kw  DC 335kw
Extrusion capacity  60-100kg/h 100-150kg/h  250-300kg/h  250-300kg/h  350-400kg/h  400-500kg/h  450-500kg/h  700-800kg/h
Max. production speed  10m/min 6m/min  6m/min  6m/min  3m/min  2m/min  0.9m/min   0.7m/min



Company Profile


Yatong New Design PE Production Line Extrusion Machine
Yatong New Design PE Production Line Extrusion Machine
Yatong New Design PE Production Line Extrusion Machine
Yatong New Design PE Production Line Extrusion Machine
Yatong New Design PE Production Line Extrusion Machine
Yatong New Design PE Production Line Extrusion Machine
Yatong New Design PE Production Line Extrusion Machine
Yatong New Design PE Production Line Extrusion Machine
Yatong New Design PE Production Line Extrusion Machine


Previous:
Next:

Zhangjiagang YaTong Machinery Co., Ltd. is a key leading enterprise of the domestic production of plastic machinery and professional manufacturers.
