Plastic PVC Sewage Pipe Extrusion Machine

Availability:
Quantity:
  • 630mm

Product Description

Plastic PVC Sewage Pipe Extrusion Machine

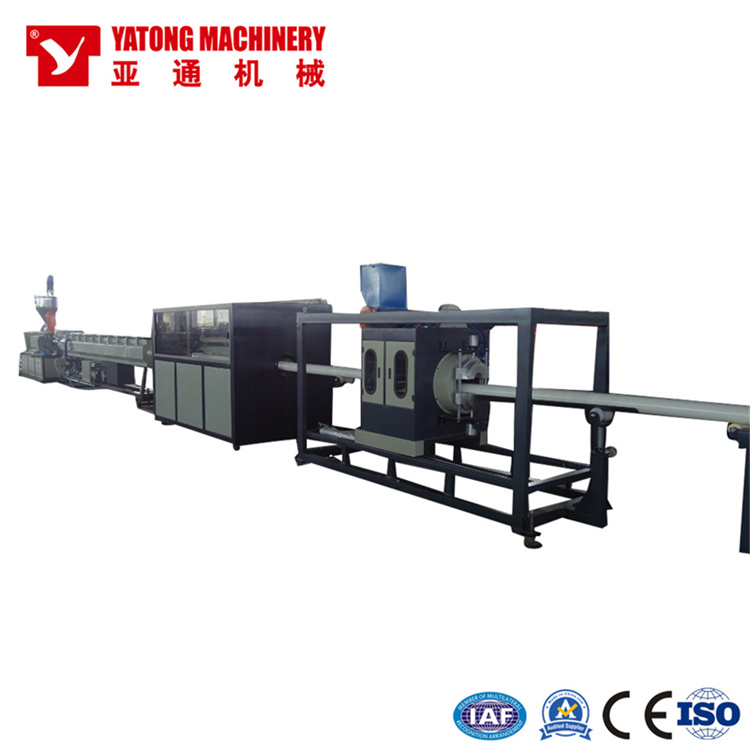

DSC03288

1- PLC control , high degree of automation
2- Adopting special screw and barrel , good effect
3- Adopting compound spiral engine head , effectively eliminate memory function of the material
4- Easy operate and need less worker
5- Convenient for maintance

Raw Material & Final Products:

Raw material: PVC resin+ other ingredients

Final Products:  PVC water/sewage pipe

Pipe Diameter: 16-630mm

Power and Size of Production line:

Total Production line: 16-30m

Power consumption of the production line(actually): 60-255kw

Specification :

Technical Parameter SJSZ92 Conical Double Screw Extruder Model SJSZ92
Screw diameter 92/188mm
Q'ty of screw 2pcs
Screw material 38CrMoALA
Screw nitriding depth 0.5-0.7mm
Screw speed 1-33rpm
Screw effective length 2500mm
Motor power 90kw
Barrel Heating power 60kw
Barrel heating zone 5zones
Barrel cooling power 0.4kw* 5zones
Extrusion capacity 500-600
Temperature controller OMRON
Contactor SCHNEIDER or SIEMENS
Vacuum Tank Tank length 6000mm
Vacuum pump 4kw
Water pump 4kw
Cooling way Water spray cooling
Haul-off Machine Traction way Pedrail traction
Traction motor 1.5kw*2pcs
Traction length 1500mm
Clamping way pneumatic
Saw Cutter Cutting motor 1.5kw
Control way PLC control
Cutting pipe size 200-400mm
Stack Rack Length 5000mm
Working table material Stainless steel
Power supply 380V/50HZ or depending on customer requirement

REMARK : if the equipment or technological parameters have some change , we shall not make a notice separately

Model Pipe
Diameter
Vacuum Calibration Tank Cooling tank Haul-off Cutting
Water Pump
(kw)
Vacuum Pump
(kw)
Length
(mm)
Water Pump
(kw)
Length
(mm)
Caterpillar Motor
(kw)
Motor
(kw)
Cutting Type
GF-63*2 16-63 4*2 4*2 5000

2 1.5*4 1.1*2 Saw Cutting
GF-160 50-160 4*2 4*1 6000

3 1.1*3 2.2*1 Planetary Cutting/
Chamfering
GF-250 63-250 4*2 5.5*1 6000

3 1.1*3 2.2*1
GF-400 160-450 5.5*2 5.5*2 6000

4 1.1*4 2.2*1
GF-630 315-630 7.5*2 7.5*2 6000 7.5*1 6000 6 1.1*6 3*1

CPVC pipe extrusion line is used for producing CPVC pipe , the conical double screw extruder can be used to extrusion CPVC power and equipped with spcialized screw and barrel for CPVC material .

PVC Pipe Application : machine for PVC tube is mainly used in the manufacturing of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing ,cable laying etc.

Transportation and Packing
• For the loose cargo we will packing by wooden box
• For the full container loading we are packing the machine by film and some on pallet accordingly
• We can ship the goods by air or by sea
• We will send pictures of cargo loading to our client to check and keep recording
• We can send cargo to client's warehouse to loading

Our service:
• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.


YATONG MACHINERY is a professional machine manufacturer dedicated to designing and developing the high technology plastic machine with more than 20 years' experience. Our developing concept is quality first, service foremost, and we are looking forward to cooperating with you for a bright future.

If you are interested in our plastic pipe extrusion machine, pls do not hesitate to contact me!
