Yatong PVC Recycling Granules Pelletzing Line / PVC Pelletizing Machine / Recycling Machine

Availability:
Quantity:
  • SJSZ65, SJSZ80, SJSZ92
  • YATONG
  • 84772010

Product Description

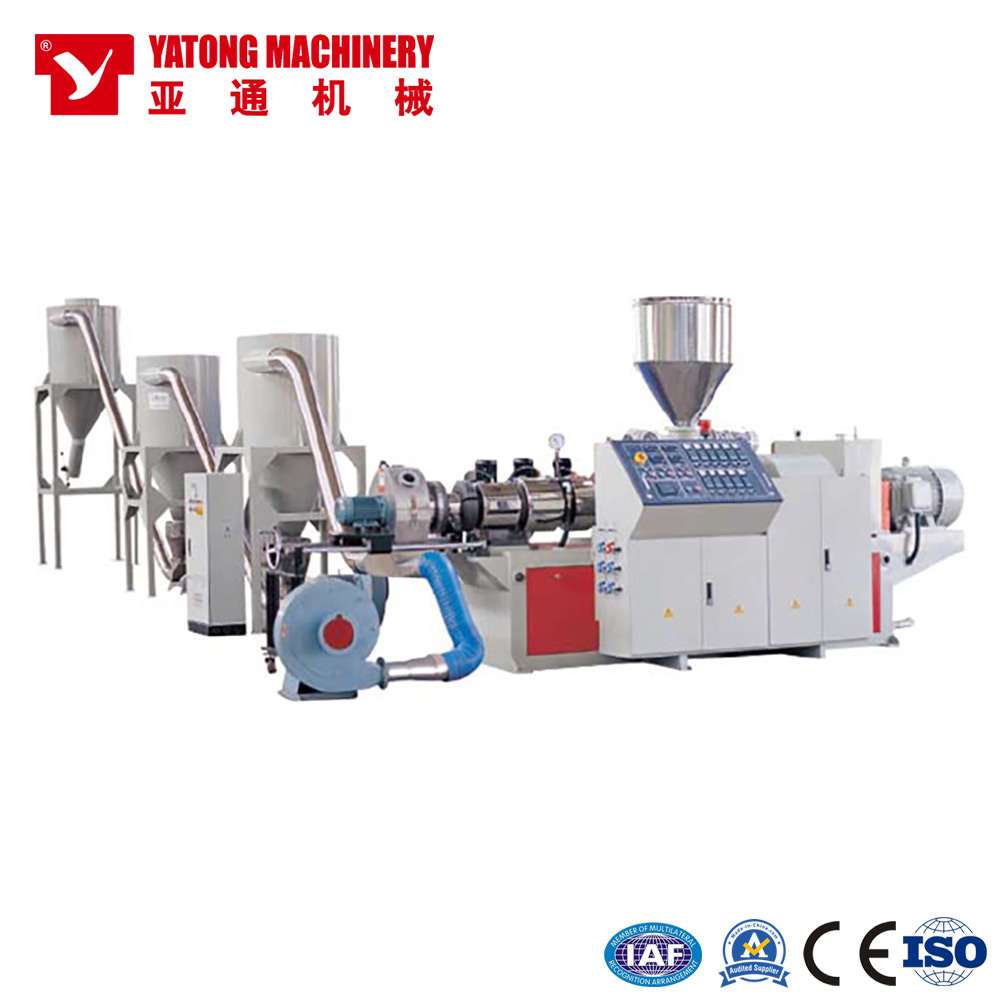

Yatong PVC Recycling Granules Pelletzing Line / PVC Pelletizing Machine / Recycling Machine

PVC-造粒生产线

Product Description

This pelletizing machine is composed by a conical twin-screw extruder and the correspondingly pelletizing downstream equipment, it is suitable for the pelletizing of PVC raw materials with wood powder or other additives. The pellets produced by this machine is evenly, solid, elegant. The pelletizing downstream equipment is the die face cutter, air transferring unit,vibration separating and cooling unit. This pelletizing downstream equipment has the features of high automation and high production efficiency.


Description

With frequency control and reasonable design, this processing line is stable, efficient, high automatic and saving energy better

1, It can be used for making PVC and WPC granules;

2, The cutting method is die cutting;

3, Plastic Granulating Machine capacity can be customized;

4, With Delta or ABB inverter can save some power consumption


Specification:

1. screw & barrel material  : 38CrMoALA

2. Screw Nitriding Depth : 0.5-0.7mm

3. Gear Box : rigidity gearsurface , thrust bearing , low noise

4. Electrical parts : (a) Temperature controller : OMRON

                                (b) Contactor : SCHNEIDER

                                (c) Frequency invertor : DELTA or customized

Technical Parameter


SJSZ65 Conical Double Screw Extruder Model SJSZ65
Screw diameter 65/132mm
Q'ty of screw 2pcs
Screw surface rigidity HV800-900
Direction of screw Outwards contra-rotation
Screw speed 1-34.7rpm
Screw effective length 1440mm
Motor power 37kw
Barrel Heating power 24kw
Barrel heating zone 4zones
Barrel cooling power 0.25kw* 3zones
Extrusion capacity 160-250kg/h
Hot Granulating system Pelletizing motor 1.1kw
Air Blowing system Fan power 3kw
Air blowing pipe material Stainless steel
Power supply 380V/50HZ or depending on customer requirement


REMARK : if the equipment or technological parameters have some change , we shall not make a notice separately

Our Services

1. Our factory provide machine testing when customer come to our factory to see this machine.
2. We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings.
3. We can provide engineers to customer's factory to help installation and training workers if customer  required.
4.Spare parts is available when u need.within warranty,we will provide without any charge.Over warranty, we can provide spare parts just with factory cost.We will take response and provide technical support and repair  of the whole machine lifetime.
